Chinese wholesale Elevator Safety Gear - Swing Rod Tension Device THY-OX-200 – Tianhongyi Detail:

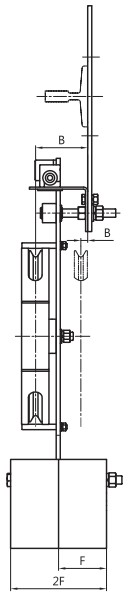

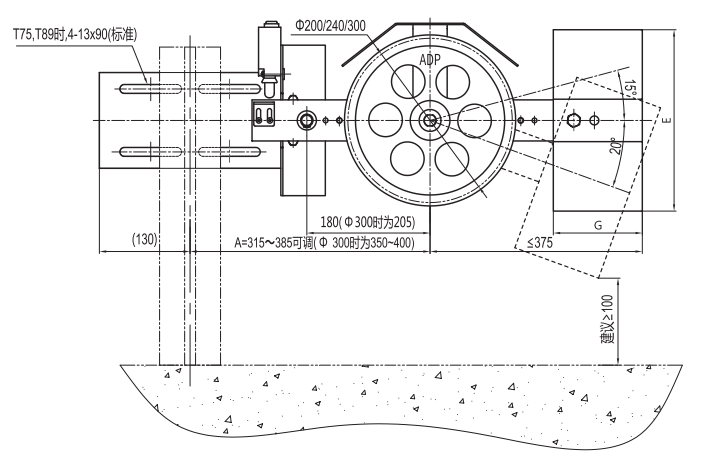

The THY-OX-200 tensioning device is composed of a tensioning wheel and a counterweight. It is installed on the side of the elevator pit guide rail. It is used with a speed limiter to compress the speed limiter wire rope so that it is in the rope groove of the speed limiter. Sufficient friction. The wire rope of the tensioner winds around the speed limiter and is connected with the safety gear link arm to form the speed limiter-safety gear protection device, which plays a role of speed limit protection. Swing rod type structure is adopted, and the installation height is not less than 450mm from the ground. The tension block is divided into high-density ore and cast iron. The appropriate tensioner size and counterweight material are selected according to the lifting height of the elevator. If the lifting height exceeds 50 meters, the weight of the counterweight must be increased. The diameter of the wire rope can be φ6 and φ8, and the tension pulley can be φ200 or φ240 mm, which is suitable for ordinary indoor working environment.

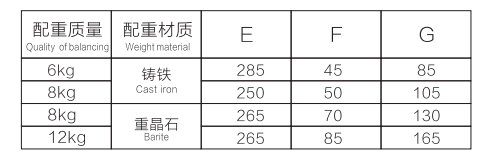

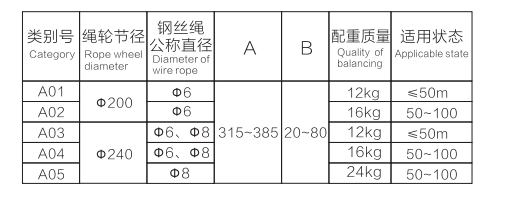

Sheave Diameter	Φ200 mm;Φ240 mm
Wire Rope Diameter	Φ6 mm;Φ8 mm
Weight Type	Barite(High density of ore)、cast iron
Installation Position	elevator pit guide rail side
Upward Control	swing rod

1. Fast Delivery

2. The transaction is just the beginning, the service never ends

3. Type: Tension Device THY-OX-200

4. We can provide safety components such as Aodepu, Dongfang, Huning, etc.

5. Trust is happiness! I will never fail your trust!

Product detail pictures:
